INTRODUCTION

An Optical Transport System



miniHUB is a format and application flexible optical transport platform, designed for a variety of video, audio and data standards.

miniHUB has been developed with any kind of facility in mind, providing a concept optimized for flexibility and scalability. The standard features allow for transport of an increasing number of signals: from analog to DVB-ASI, SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI(4K), MADI audio and 1G/10G Ethernet. miniHUB also support transport of the newest IP-standards, SMPTE 2022-6/7 and SMPTE 2110.

The optical transport is commonly done via dark fiber. Signal count per fiber varies from a single channel per fiber to more than 20 channels per fiber, dependent of signal type. miniHUB supports a multitude of network structures. Such structures include, but is not limited to: Point-To-Point, Ring net, Star and/or combinations of these.

From a technological point of view, the miniHUB concept brings a lot of automated features to market, in terms of:



  • Re-configuration of cards based on Norwia's AutoSFP® technology

  • More than 200 configurations available

  • Auto-patch function based on signal presence

  • Ultra-high frame density, with minimum dual output or loop-through on input

  • Up to 32 optical conversions pr. 1RU, including 18 ch. CWDM filter

  • Top-of-the-line 2:1 optical change-over, fully automated with close to zero delay

  • And numerous other built-in features



Norwia's AutoSFP® technology enables the system to identify the type of SFP's installed. As soon as an SFP is installed, the card (re-)configures itself to support the SFP. Therefore, the same card may be either an input, output or a combined input/output card. Each card supports two SFP's, up to 4 channels. For ethernet solutions, each card will support dual transceivers to automatically configure the ethernet link. Ethernet data rates up to 10Gbps is supported.

Other formats available: RS232/422, BlackBurst, GPIO/Tally, various combinations of the these.

The miniHUB customers are spread out across the globe: Oceania, Asia, Africa, Europe and North- and South-America. The customer base today is a mix of everything from large entities with Broadcast and/or Telco presence in several countries, to small customers that only needs transport of a few signals.



Below are some basic configuratios of what the miniHUB can do for you. Remember to read on further to find out about the innovative technologies used, and the flexibility of this product.

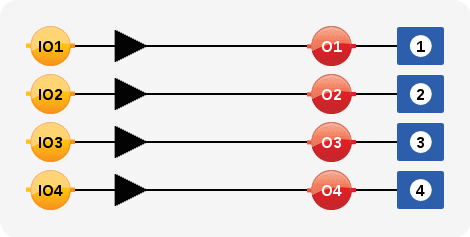

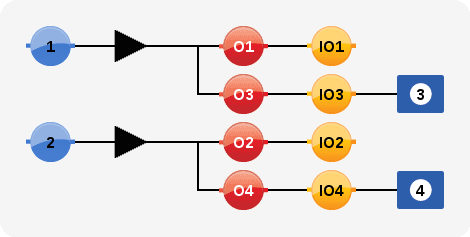

2 x Dual RX SFP with dual outputs
2 x Dual RX SFP with dual outputs

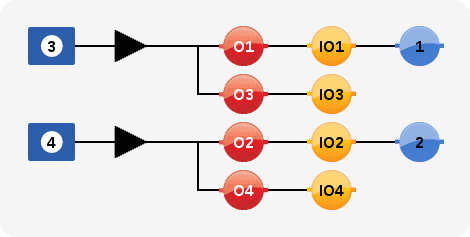

2 x Dual TX SFP with loop through outputs
2 x Dual TX SFP with loop through outputs

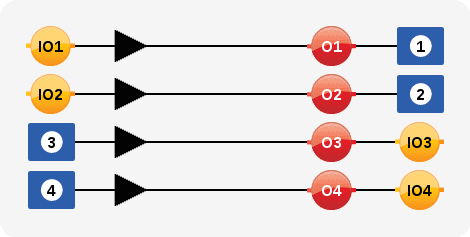

1 x Dual RX and 1 x Dual TX SFP
1 x Dual RX and 1 x Dual TX SFP

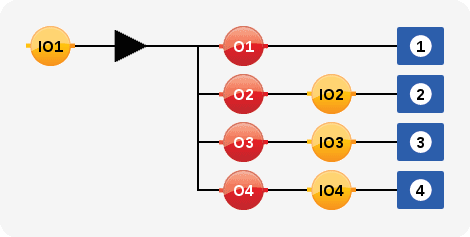

Optical distribution including SDI distribution amplifier
Optical distribution including SDI distribution amplifier

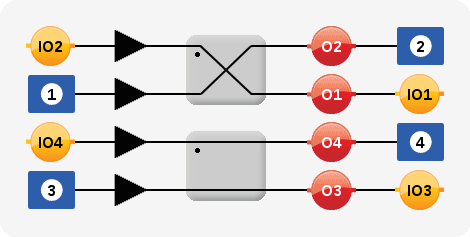

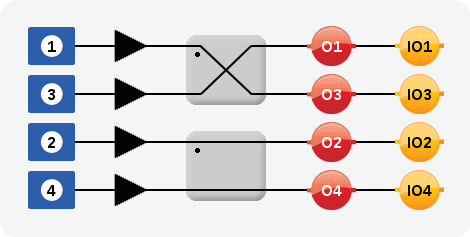

Dual optical change-over
Dual optical change-Over

Dual automatic Add/Drop/Pass node for ring networks
Dual automatic Add/Drop/Pass node for ring networks



Gigabit Ethernet to fiber converter
Gigabit Ethernet to fiber converter

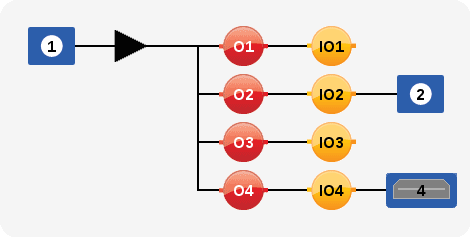

Fiber transceiver with HDMI and SDI outputs
Fiber transceiver with HDMI and SDI outputs



Dual analog video to fiber converter with quad DA outputs
Dual analog video to fiber converter with quad DA outputs

Dual fiber to analog video converter with quad DA outputs
Dual fiber to analog video converter with quad DA outputs



This is a small selection of the many different combinations, please download the OC-4B-SDI Card brochure for a more comprehensive selection.
